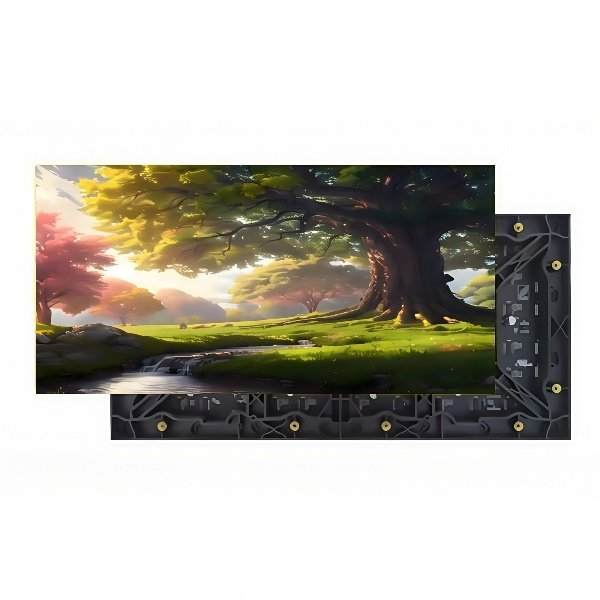

P1.25 Indoor LED Display Module – Yunying Series by InspurLED

Key Features: 1.25mm pitch indoor LED module with HDR • 3840Hz refresh • 140° wide view • high contrast • and seamless splicing for vivid displays

INQUIRY EMAIL

Ultra-fine pitch P1.25 indoor LED screen with HDR, 3840Hz refresh rate, wide 140° viewing angle, and seamless splicing for high-definition visual applications.

LED Display Module

InspurLED indoor fine-pitch LED display module features advanced HDR image technology, offering high brightness, high contrast, and a wide 140°+ viewing angle. It delivers sharp, vivid visuals from every angle with consistent color performance, high reliability, and a long service life—ideal for control rooms, conference halls, and commercial display environments.

Product Features

High-Precision Visuals: Delicate, true-to-life image quality with stable and uniform brightness. No flicker, no grainy texture—ideal for high-demand indoor display environments.
Nano-Level Response Time: Instant image rendering with zero ghosting or motion trailing, ensuring smooth video playback and dynamic visuals.
Superior Color Consistency: Uniform ink coating and color accuracy across the entire LED panel deliver consistent brightness and chromaticity.
3840Hz Ultra-High Refresh Rate: Provide smooth, flicker-free display performance perfect for broadcasting, live events, and high-speed content playback.
Broadcast-Grade Grayscale: Fine grayscale processing enhances image depth and detail, especially in low-light or high-contrast scenes.
Ultra-Wide Viewing Angle: Over 140° horizontal and vertical viewing ensures uniform brightness and color from any perspective—ideal for control rooms, conference centers, and retail displays.
Flexible Seamless Splicing: Support modular installation in any direction or size, creating a bezel-free, uniform large-screen experience for video walls, command

Product Specifications

Model	LED Display Module	LC10SNP125
Module Composition	Pixel Composition	1R1G1B
	LED Packaging	SMD1010
	Pixel Pitch (mm)	1.25
	Module Resolution (W×H)	256×128
	Module Size (W×H) (mm)	320×160
	Module Power Consumption	≤30W
	Module Input Voltage	4.5V～ 5V
Optical Parameters	Single Point Brightness Correction Function	Support
	Single Point Chroma Correction Function	Support
	Brightness (cd/㎡)	500
	Color Temperature (K)	6500 (adjustable from 2000K to 9300K)
	Visual Angle	Horizontal 140°/ vertical 140°
	Light Point Center Distance Deviation	< 3%
	Brightness/Chroma Uniformity	≥97%
	Contrast Ratio	5000:1
Electrical Parameters	Peak Power Consumption (W/㎡)	≤600
	Average Power Consumption (W/㎡)	≤195
	Power Supply Requirements	AC186 to 264V, frequency 47 to 63 (Hz)
Handling Performance	Driving Method	Constant current drive 1/64 sweep
	Frame Changing Frequency	50/60Hz
	Refresh Rate (Hz)	3840
	Gray Level	16384
	Processing Depth (bits)	14
	Brightness Control	Manual/automatic/programmed
Usage Parameters	Lifespan Typical Value (h)	≥50000
	Interface Type	HUB320 port
	Operating Temperature/Humidity Range	-20°C — 40° C / 10%-65%RH(no-condensing)
	Storage Temperature/Humidity Range	-20° C — 40°C / 10%-65%RH(no-condensing)

Note：

Specifications are typical values and may vary by batch; refer to the factory report for exact data.
Product details may change with ongoing upgrades; please confirm with regional distributors before purchase.
Customized products require a separate specification sheet.

Signal Interface Definition

HUB320 interface

Pins	Signal	Features	Pins	Signal	Features
1	R1	Red Data signal	2	G1	Green data signal
3	B1	Blue Data signal	4	GND	Power ground
5	R2	Red data signal	6	G2	Green Data signal
7	B2	Blue Data signal	8	GND	Power ground
9	R3	Red Data signal	10	G3	Green Data signal
11	B3	Blue Data signal	12	GND	Power ground
13	R4	Red Data signal	14	G4	Green data signal
15	B4	Blue Data signal	16	GND	Power ground
17	A	Line decode the signal	18	B	The line decodes the signal
19	C	Line decode the signal	20	NC	Empty signal
21	NC	Empty signal	22	GND	Power ground
23	CLK	Clock signal	24	LAT	Latch signal
25	OE	Enabling signal	26	GND	Power ground
