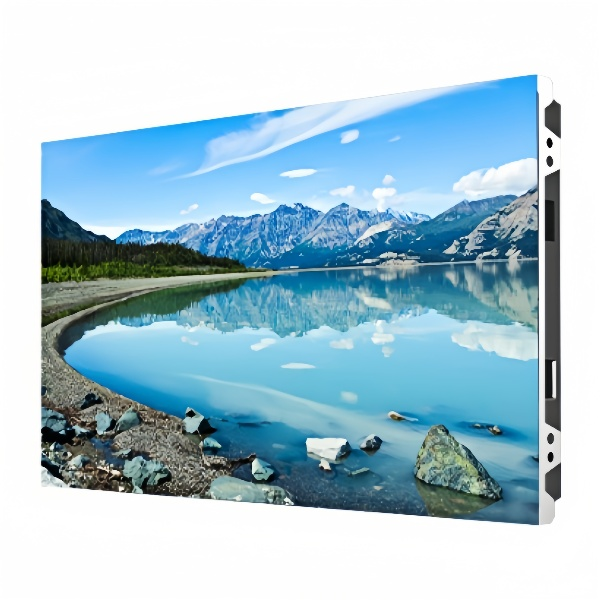

COB P0.9 Mini & Micro LED Display Module – Yuanxu Series by InspurLED

The InspurLED Yuanxu IV6309B offers ultra-clear 0.9375mm fine-pitch display with full-flip COB technology. It features a 170° viewing angle, ≥115% color gamut, HDR support, and IP65 front protection. This slim, energy-efficient display is ideal for large scenes.

INQUIRY EMAIL

Immersive Visuals, 170° Wide Viewing Angle, High Contrast, IP65 Protection, Ideal for Large Scene Displays.

LED Display Terminal

Based on a new generation of full-flip COB micro-display technology, the LED small-pitch splintered screen of the Tidal Yuexu series supports advanced HDR digital image technology, and has the characteristics of super large, ultra-thin, ultra-clear, ultra-bright, ultra-reliable, ultra-protection, etc. The flip-flip COB small-pitch ultra-clear display will become the ultimate solution for large scene display in the era of micro-display.

Product Features

Flip COB Packaging: Upgraded from point-to-surface welding for enhanced reliability, stability, and improved heat resistance.
16:9 Aspect Ratio: This aspect ratio is a perfect point-to-point match for FHD, 4K, and 8K LED displays, ideal for high-resolution indoor applications.
Ultra-Wide Viewing: 115% color gamut with a 170° viewing angle, offering consistent color and brightness from any direction.
Anti-Glare Panel: Surface coating reduces light reflection and radiation, ensuring comfortable long-term viewing.
Lightweight & Durable Design: High-density aluminum alloy cabinet with integrated die-casting for strength, precision, and portability.
High Contrast & Black Coating: Advanced black optical processing delivers a 10,000:1 contrast ratio and immersive visual depth.
IP65-Rated Protection: Built for harsh environments—resistant to water, dust, corrosion, shock, salt spray, and static.
Efficient Heat Dissipation: Smart thermal control ensures even temperature across the screen and reduces power consumption by 20%.
HDR Technology: High Dynamic Range rendering produces rich detail and lifelike quality in static and high-motion visuals.
Front Maintenance Design: 100% front-access service requires no rear maintenance space, saving installation time and costs.

Product Specifications

Model	LED Display Terminal	IV6309B
Module Composition	Pixel Composition	RGB
	Package Method	Flip COB
	Pixel Pitch (mm)	0.9375
	Pixel Density (points /m²)	1137777
	Module Resolution (W×H)	160×180
	Module Dimensions (W×H) (Mm)	150×168.75
Cabinet	Unit Size (W×H×D)	600×337.5×32
	Unit Resolution (W×H)	640×360
	Unit Weight (kg)	4.3
	Maintenance Method	Front maintenance
	Protection Level	IP65 (front)
	Cabinet Material	Die-cast aluminum
	Flatness	0.15 mm
Optical Parameters	Point-By-Point Correction	Support
	Flash Storage Function	Support
	Brightness (cd/㎡)	Standard 600 (Customization to 2000)
	Color Temperature (K)	3000-10000 adjustable
	Viewing Angle	Horizontal 170°/ Vertical 170°
	Brightness Uniformity	≥97%
	Chroma Uniformity	±0.003Cx, within Cy
	Color Gamut	≥115%
	Contrast Ratio	≥10000:1
Electrical Parameters	Maximum Power Consumption (W/M²)	≤350
	Average Power Consumption (W/M²)	≤112
	Operating Voltage	AC 100-240V (50/60Hz)
Handling Performance	Number Of Scans	54
	Image Frame Change Rate (Hz)	50/60
	Refresh Rate (Hz)	3840
	Grayscale (bits)	16
Usage Parameters	Lifespan Typical Value(h)	≥100000
	Operating Temperature/Humidity Range	-10℃ – 40℃ / 10%-90%RH (non-condensing)
	Storage Temperature/Humidity Range	-20 ° C – 60 ° C / 10%-90%RH (non-condensing)
