High-brightness P5 outdoor LED module with HDR, 5000 nits, 140° viewing angle, and 3840Hz refresh for signage, billboards, and public displays.

LED Display Module

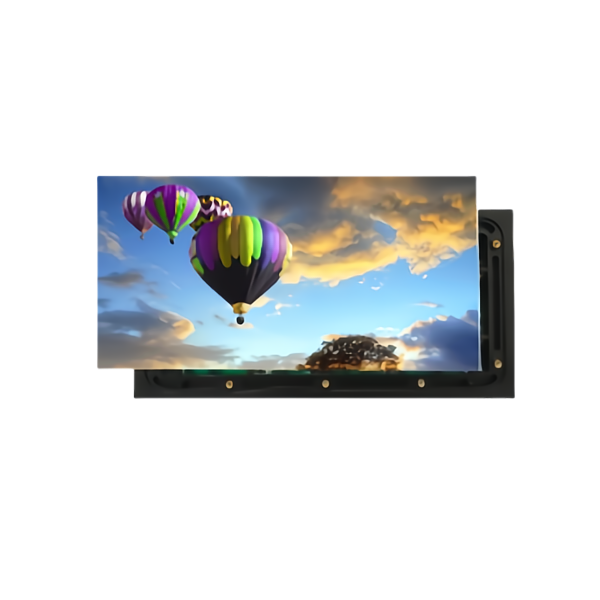

InspurLED Yunsheng Series outdoor LED display module features advanced HDR imaging technology, delivering ultra-high brightness, superior contrast, and a wide 140°+ viewing angle. Designed for outdoor advertising, public signage, and commercial display applications, it ensures vibrant image quality from every angle. Built for reliability and long operational life, this outdoor LED module is ideal for all-weather performance in demanding environments.

Product Features

Premium LED Components: Utilize top-tier branded LED lamp beads with matte black bracket packaging, ensuring consistent color and uniform surface ink.
High Brightness & Wide Viewing Angle: Offers up to 5000 nits brightness with a wide 140°+ viewing angle, ideal for outdoor digital signage and advertising billboards.
Advanced Image Processing: Equipped with a constant current driver IC, 14-bit broadcast-grade grayscale, and a wide color gamut for smooth, high-fidelity image reproduction.
Vivid and Stable Visual Performance: Provides realistic, sharp image quality with uniform brightness control, delivering clear visuals even in direct sunlight.
Flexible Modular Design: Break the limitations of traditional cabinets- LED panels can be spliced freely for customized screen sizes and formats.
Reliable & Long-Lasting: Built with high-quality components and precision manufacturing processes to minimize dead pixels, ensuring long service life and high operational reliability in harsh outdoor environments.

Product Specifications

Model	LED Display Module	LC19HWP50
Module Composition	Pixel Composition	1R1G1B
	LED Packaging	SMD1921
	Pixel Pitch (mm)	5
	Module Resolution (W×H)	64×32
	Module Size (W×H) (mm)	320×160
	Module Power Consumption	≤38W
	Module Input Voltage	4.5V～ 5V
Optical Parameters	Single Point Brightness Correction Function	Support
	Single Point Chroma Correction Function	Support
	Brightness (cd/㎡)	5000
	Color Temperature (K)	6500(adjustable from 2000K to 9300K)
	Visual Angle	Horizontal 140°/ vertical 140°
	Light Point Center Distance Deviation	＜3%
	Brightness/Chroma Uniformity	≥97%
	Contrast Ratio	5000:1
Electrical Parameters	Peak Power Consumption (W/㎡)	≤760
	Average Power Consumption (W/㎡)	≤255
	Power Supply Requirements	AC100 to 240V (50-60Hz)
Driving Method	Driving Method	Constant current drive 1/8 sweep
	Frame Change Frequency	50/60Hz
	Refresh Rate (Hz)	3840
	Brightness Control	16384
	Processing Depth (bits)	14
	Brightness Control	Manual/automatic/programmed
Usage Parameters	Lifespan Typical Value(h)	≥50000
	Interface Type	HUB75E interface
	Operating Temperature/Humidity Range	-20 °C — 50 ° C / 10%-90%RH (no-condensing)
	Storage Temperature/Humidity Range	-40 °C — 60 ° C / 10%-90%RH (no-condensing)

Note:

The above specifications are typical values for this LED display module. Actual performance may vary slightly between production batches. For accurate data, please refer to the factory inspection report provided with the product.
This LED screen product is continuously optimized and upgraded during the manufacturing process. Therefore, specifications may be updated at any time. Please consult your regional distributor or sales contact to confirm the latest version before purchasing.
We provide a new specification sheet for custom LED displays with special sizes or configurations.

Signal Interface Definition

HUB75E interface

Pins	Signal	Features	Pins	Signal	Features
1	R1	Red Data signal	2	G1	Green Data signal
3	B1	Blue Data signal	4	GND	Power ground
5	R2	Red data signal	6	G2	Green Data signal
7	B2	Blue Data signal	8	GND	Power ground
9	A	Line decode the signal	10	B	Line decode the signal
11	C	Line decode the signal	12	GND	Power ground
13	CLK	Clock signal	14	LAT	Latch signal
15	OE	Enabling signal	16	GND	Power ground
