High-resolution P2 indoor LED display with HDR, 3840Hz refresh, and wide 140° viewing angle for seamless visual performance in commercial environments.

LED Display Module

InspurLED indoor fine-pitch LED display module features advanced HDR image technology, offering high brightness, high contrast, and a wide 140°+ viewing angle. It delivers sharp, vivid visuals from every angle with consistent color performance, high reliability, and a long service life—ideal for control rooms, conference halls, and commercial display environments.

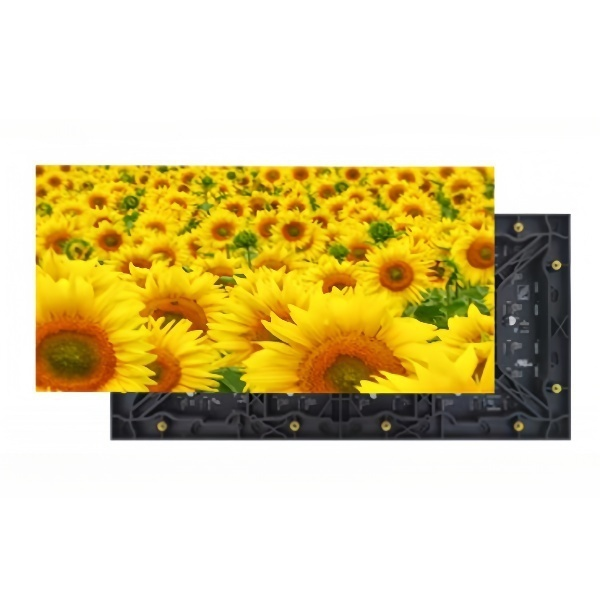

P2 Indoor LED module InspurLED-HMZ — P2 Indoor LED module InspurLED

Product Features

High-Precision Visuals: Delicate, true-to-life image quality with stable and uniform brightness. No flicker, no grainy texture—ideal for high-demand indoor display environments.
Nano-Level Response Time: Instant image rendering with zero ghosting or motion trailing, ensuring smooth video playback and dynamic visuals.
Superior Color Consistency: Uniform ink coating and color accuracy across the entire LED panel deliver consistent brightness and chromaticity.
3840Hz Ultra-High Refresh Rate: Provide smooth, flicker-free display performance perfect for broadcasting, live events, and high-speed content playback.
Broadcast-Grade Grayscale: Fine grayscale processing enhances image depth and detail, especially in low-light or high-contrast scenes.
Ultra-Wide Viewing Angle: Over 140° horizontal and vertical viewing ensures uniform brightness and color from any perspective—ideal for control rooms, conference centers, and retail displays.
Flexible Seamless Splicing: Supports modular installation in any direction or size, creating a bezel-free, uniform large-screen experience for video walls, command
Product Specifications

Model	LED Display Module	LC15SNP20
Module Composition	Pixel Composition	1R1G1B
	LED Packaging	SMD2020
	Pixel Pitch (mm)	2
	Module Resolution (W×H)	128×64
	Module Size (W×H) (mm)	320×160
	Module Power Consumption	≤30W
	Module Input Voltage	4.5V～ 5V
Optical Parameters	Single Point Brightness Correction Function	Support
	Single Point Chroma Correction Function	Support
	Brightness (cd/㎡)	500
	Color Temperature (K)	6500 (adjustable from 2000K to 9300K)
	Visual Angle	Horizontal 140°/ vertical 140°
	Light Point Center Distance Deviation	< 3%
	Brightness/Chroma Uniformity	≥97%
	Contrast Ratio	5000:1
Electrical Parameters	Peak Power Consumption (W/㎡)	≤600
	Average Power Consumption (W/㎡)	≤195
	Power Supply Requirements	AC186 to 264V, frequency 47 to 63 (Hz)
Handling Performance	Driving Method	Constant current drive 1/32 sweep
	Frame Changing Frequency	50/60Hz
	Refresh Rate (Hz)	3840
	Gray Level	16384
	Processing Depth (bits)	14
	Brightness Control	Manual/automatic/programmed
Usage Parameters	Lifespan Typical Value (h)	≥50000
	Interface Type	HUB75E port
	Operating Temperature/Humidity Range	-20°C — 40° C / 10%-65%RH(no-condensing)
	Storage Temperature/Humidity Range	-20°C — 40°C / 10%-65%RH(no-condensing)

Note:

Specifications are typical values and may vary by batch; refer to the factory report for exact data.
Product details may change with ongoing upgrades; please confirm with regional distributors before purchase.
Customized products require a separate specification sheet.

Signal Interface Definition

HUB75E interface

Pins	Signal	Features	Pins	Signal	Features
1	R1	Red data signal	2	G1	Green data signal
3	B1	Blue data signal	4	GND	Power ground
5	R2	Red data signal	6	G2	Green data signal
7	B2	Blue data signal	8	GND	Power ground
9	A	Row decoding signal	10	B	Row decoding signal
11	C	Row decoding signal	12	GND	Power ground
13	CLK	Clock signal	14	LAT	Latch signal
15	OE	Enable signal	16	GND	Power ground
